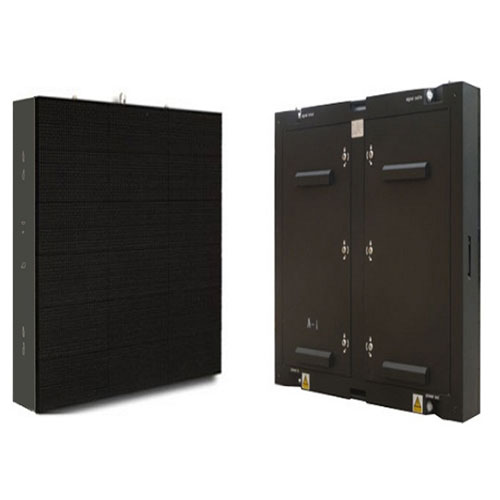

Outdoor P10 Sports LED Display

Feature:
(1)Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
(6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.

Application:
The Sports led Display is most commonly used for showing scores/live matches and advertising for instance in a football ground, cricket ground, baseball ground, etc for outdoor purposes and also indoor as well for basketball, ice hockey, tennis court,. We have the experience of providing both indoor and outdoor perimeter displays. The below is an example of the technical specs with reference to a 16mm outdoor led perimeter display. For more information on other pixel pitch, drop us an e-mail and we will reply with full details.

Specs :
ch: 10mm
LED type: DIP 5454(Super Flux)
Brightness: ≥5500nits
Drive Method: 1/2
Pixel density : 10000pix/㎡
Viewing angle : 140°H and 120°v
Lifetime : 50000 hrs
Power consumption/tile : average 525w/㎡, max 1250w/㎡
Operation power voltage : 200-240 V / 50-60 HZ
Tile/size (W×H) in mm : 960×960mm
Cabinet weight: 45kg
IP rating : IP65/54
Processing: 14 bit
Refresh rate : >1200HZ
Operating temperature : -20-50 degree
Storage temperature: -40-60 degree
Operation humidity: 10-90%
Storage humidity: 10-90%
Control system: Linsn/Nova
Compliant standard: CE,FCC,CCC,RoHS
