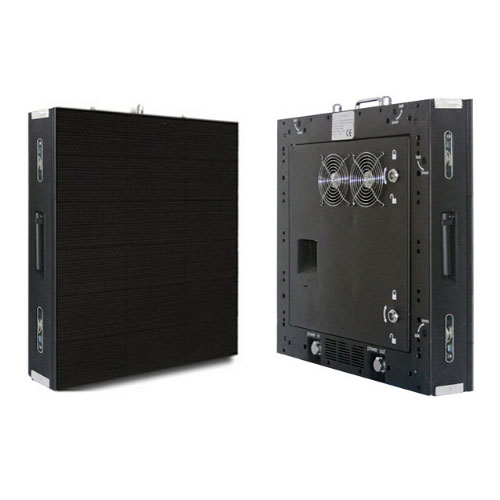

Outdoor Fixed P6 Advertising LED Display

Feature :
Standardized size and light&thin structure: adopts strenght metal material, with pretty rigidity, light weight and high accuracy.High picture quality, average uniformity 5%, max uniformity 1%; high refresh frequency and gray level. Short lead time.

High load-bearing capability, fast assembly, free shaping, no deformation under high temperature and low temperature working surrounding.

Low heat, low noise, low radiation: through the advanced structure in-conducting designing, keep very silent working status. EMC passed

Adopts strong electricity hot-plugs, no Spark discharge during hot-plug in and hot-plug out. Absolutely waterproof, tamper-proof and anti-corrosion

Module easy maitenance, no light reflection from mask, anti-UVR and ensure no fading for 5 years. Contrast ratio: 1000:1; Flatness of cabinets: <0.5mm. Power effective ratio more than 88%.

Double backup data can ensures that the screen can work in high efficiency, stability, security situation.

Specs :
Item Outdoor Fixed P6 Advertising LED Display
Pixel Pitch: 6mm
Driving Method : 1/4
LED type : SMD3535
Brightness: ≥5500cd/㎡
Pixel density 27777pix/㎡
Viewing angle: 140°H and 120°v
Module Size(W*H) 192*192mm
Cabinet Size(W*H)768*768mm
Cabinet weight: 26kg
Cabinet Material: Aluminum
Avarage Power Consumption: 800 W/㎡
Max Consumption : 1700 W/㎡
Refresh rate: ＞1200HZ
Color Depth: 14bit
voltage : 200-240V
IP Rrating (Front/Rear): IP65/IP54
Operating temperature : -20-60 degree
Storage temperature: -40-70 degree
Operation humidity: 10-90%
Storage humidity: 10-90%
Life span (hrs) ≥55000
Control system Linsn/Nova
Compliant standard: CE,TUV,RoHS,CCC
